Передняя перегородка

[SeregAcura]

Передняя перегородка

Заказать: можно тут

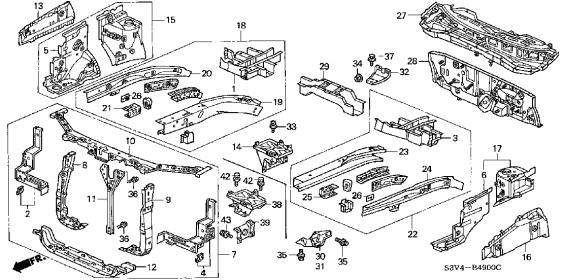

1 04600S3VA00ZZ OUTRIGGER SET, R. FR. SIDE
2 04601S3VA01ZZ PANEL SET, R. FR. BULKHEAD
3 04605S3VA00ZZ OUTRIGGER SET, L. FR. SIDE
4 04611S3VA01ZZ PANEL SET, L. FR. BULKHEAD
5 04642S3VA01ZZ WHEELHOUSE SUB-SET, R. FR.
6 04652S3VA01ZZ WHEELHOUSE SUB-SET, L. FR.
7 60400S3V315ZZ BULKHEAD, FR.
8 60413S3VA01ZZ STAY, R. BULKHEAD SIDE
9 60414S3VA01ZZ STAY, L. BULKHEAD SIDE
10 60431S3V305ZZ FRAME, FR. BULKHEAD (UPPER)
11 60434S3VA01ZZ STAY, FR. BULKHEAD CENTER
12 60441S3VA00ZZ CROSSMEMBER, FR. BULKHEAD (LOWER)
13 60613S3VA03ZZ MEMBER, R. FR. WHEELHOUSE (UPPER)
13 60613S3VA00ZZ MEMBER, R. FR. WHEELHOUSE (UPPER)
14 60630S3VA00ZZ BASE, BATTERY SETTING
15 60650S3VA01ZZ HOUSING, R. FR. SHOCK ABSORBER
16 60713S3VA01ZZ MEMBER, L. FR. WHEELHOUSE (UPPER)
17 60750S3VA00ZZ HOUSING, L. FR. SHOCK ABSORBER
18 60810S3VA01ZZ FRAME, R. FR. SIDE
19 60811S0XA01ZZ FRAME, R. FR. SIDE
20 60812S3VA00ZZ EXTENSION, R. FR. SIDE
21 60822S0XA00ZZ STIFFENER, R. FR. SIDE
22 60910S3VA01ZZ FRAME, L. FR. SIDE
23 60911S0XA01ZZ FRAME, L. FR. SIDE
24 60912S3VA00ZZ EXTENSION, L. FR. SIDE
25 60922S0XA00ZZ STIFFENER, L. FR. SIDE
26 60927S3VA00ZZ PLATE, FR. TOW HOOK
27 61100S3VA01ZZ DASHBOARD (UPPER)
28 61500S3VA01ZZ DASHBOARD (LOWER)
29 65130S3VA00ZZ CROSSMEMBER A, FR. FLOOR
30 74180S3VA00 HOOK, R. FR. TOW
31 74185S3VA00 HOOK, L. FR. TOW
32 74291S0XA01ZZ STAY, DASHBOARD (LOWER)
33 90105SV1000 BOLT-WASHER (8X20)
34 90301SP0003 NUT, PAINT CUTTING (6MM)
34 90301SV7000 Гайка (6 MM)
35 934011002008 Болт (10X20)
35 934051002508 BOLT-WASHER (10X25)
36 934030601208 BOLT-WASHER (6X12)
37 934050601608 Болт (6X16)
37 934050602008 Болт
