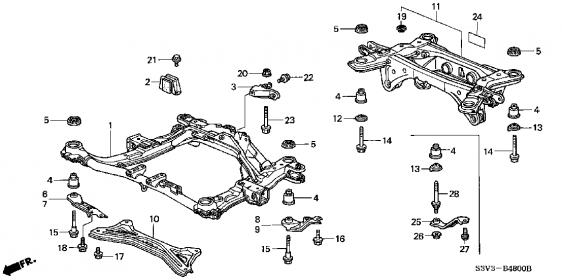

Задняя балка - поперечная балка

Заказать: можно тут


1 50200S3VA00 SUB-FRAME, FR. SUSPENSION
2 50205S0XA00 DAMPER, FR. SUB-FRAME DYNAMIC
3 50210S3VA00 STIFFENER, STEERING RACK
4 50230S3VA01 Сайлентблок подрамника
5 50231S3VA01 INSULATOR C, SUB-FRAME MOUNTING (UPPER)
6 50232S3VA00 STAY A, R. SUB-FRAME MOUNTING
7 50233S3VA00 STAY A, L. SUB-FRAME MOUNTING
8 50237S0XA00 STAY B, R. SUB-FRAME MOUNTING
9 50238S0XA00 STAY B, L. SUB-FRAME MOUNTING
10 50240S9VA00 STIFFENER, FR. SUB-FRAME
11 50300S3V003 SUB-FRAME, RR. SUSPENSION
12 50354S3VA00 WASHER E, SUB-FRAME MOUNTING
13 50356S3VA00 WASHER F, SUB-FRAME MOUNTING
14 90160S0XA00 BOLT, FLANGE (14X125)
15 90161S0XA00 BOLT, FLANGE (14X125)
16 90164S0XA00 BOLT, FLANGE (12X30)
16 90169S3VA00 BOLT, FLANGE (12X30)
17 90165S3VA00 BOLT, FLANGE (10X20)
18 90181SK3E00 BOLT, FLANGE (12X28)
19 91613SR3003 GROMMET, SUB-FRAME (15MM)
20 9405010080 NUT, FLANGE (10MM)
21 957010801608 BOLT, FLANGE (8X16)
22 957011001608 BOLT, FLANGE (10X16)
23 957011009008 BOLT, FLANGE (10X90)
24 41400PGJ000 LABEL (VTM-4)
